Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories

Zhejiang Jiangchao Technology Co., Ltd
Contact Now
    Buy cheap Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories from wholesalers

    Buy cheap Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories from wholesalers
    • Buy cheap Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories from wholesalers

    Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories

    Ask Lasest Price
    Brand Name : XQ
    Model Number : HSSZ25
    Certification : ISO9001:2008 / CE
    Payment Terms : LC,TT
    Supply Ability : 5000 per month
    Price : Negotiate
    • Product Details
    • Company Profile

    Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories

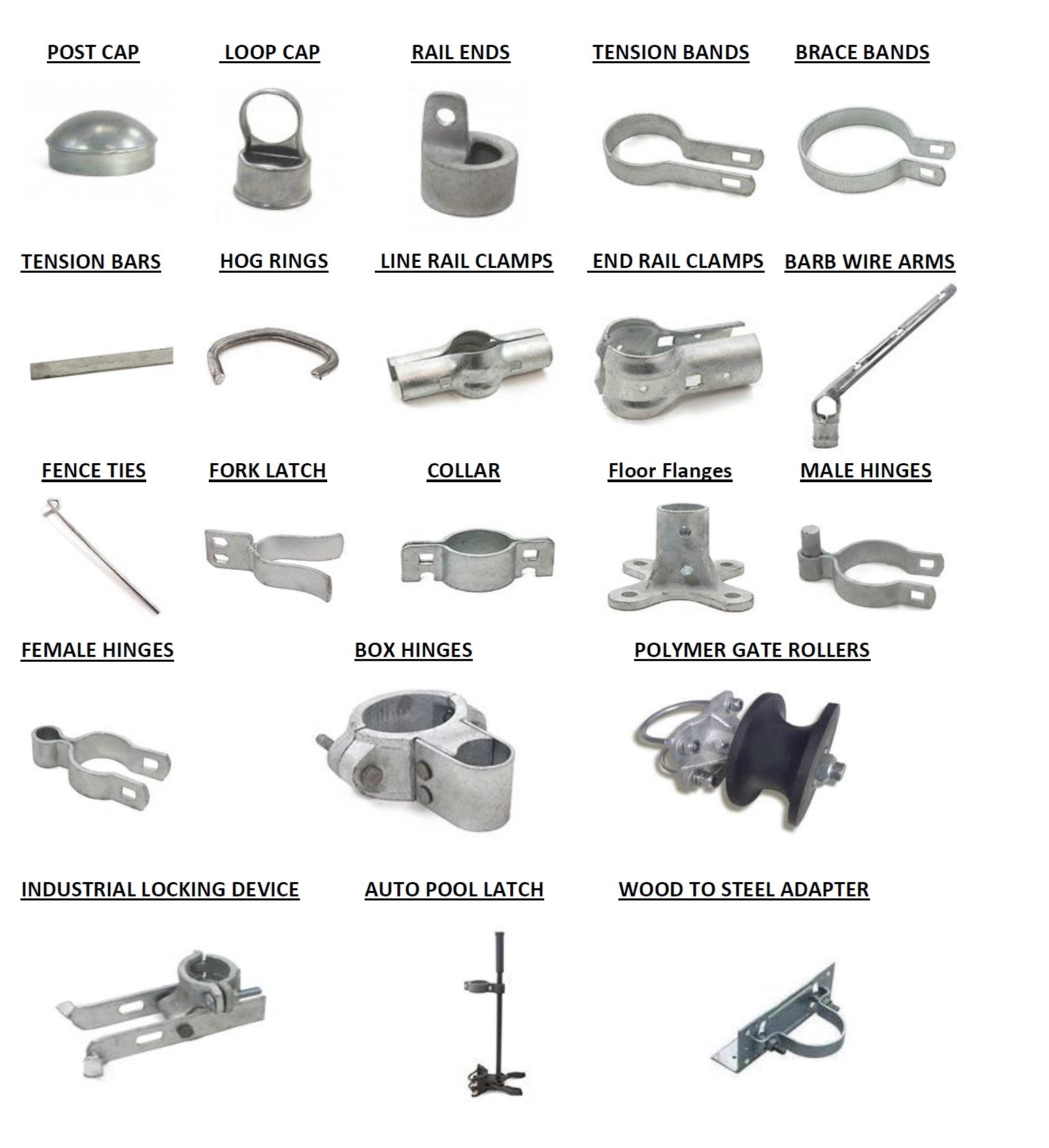

    Hot dip galvanized Iron Craft chain link fence hardware accessories/ fittings/ parts


    Galvanzied chain link fence fittings can be PVC coated or Galvanized.

    1. Flat iron : support chain link fence

    2. Brace band : link tensioner & post

    3. Tension band : Link the flat iron & post

    4. Tensioner : secure the line wire

    5. Line wire : Folding the chain link mesh

    6. Tie wire & Stirrup wire : secure the line wire & post and secure the post and the mesh.

    7. Any other types fittings and accessories for chain link fence installation


    Product Name
    Fence Clips, Clamps, Base feet, Top arm, Support, Wire Strainer
    Color
    Galvanized, Dark Green, Dark Grey, Black or customized
    Usage
    Garden fence, Highway fence, Sport fence, Farm fence, Boundary fence
    Certification
    ISO9001:2008/CE/SGS/BV
    Quality Standard
    EN, BS, DIN, ASTM
    Minimum Order Quantity
    1000 sets


    Product Description

    Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories

    Galvanzied chain link fence fittings can be PVC coated or Galvanized.

    1. Flat iron : support chain link fence
    2. Brace band : link tensioner & post
    3. Tension band : Link the flat iron & post
    4. Tensioner : secure the line wire
    5. Line wire : Folding the chain link mesh
    6. Tie wire & Stirrup wire : secure the line wire & post and secure the post and the mesh.
    7. Any other types fittings and accessories for chain link fence installation
    Product details
    Tension Bands
    Round Post Size
    Weight
    1-3/8"
    0.22 lbs
    1-5/8"
    0.23 lbs
    2"
    0.25 lbs
    2-1/2"
    0.28 lbs
    3"
    0.32 lbs
    3-1/2"
    0.40 lbs
    4"
    0.42 lbs
    6-5/8"
    0.64 lbs
    Brace Bands
    Post Size
    Weight
    1-3/8''
    0.17lbs
    1-5/8"
    0.20 lbs
    2"
    0.22 lbs
    2-1/2"
    0.27 lbs
    3"
    0.33 lbs
    3-1/2"
    0.36 lbs
    4"
    0.42 lbs
    6-5/8"
    0.76 lbs
    180 ° Brace Band
    Size
    Weight
    2''
    0.25 lbs
    2-1/2"
    0.27 lbs
    3''
    0.34 lbs
    4''
    0.50 lbs
    Rail End Caps
    Rail Size
    Weight
    1-5/8"
    0.35 lbs
    2"
    0.39 lbs
    45° Barb Wire Arm 6-Strand
    Size
    Weight
    Fits 2 O.D. Post,1-5/8 Top Rail"
    2.88 lbs
    Fits 2-1/2 O.D. Post,1-5/8 Top Rail"
    3.09 lbs
    90 ° Brace Band
    Size (O. D)
    Weight
    2"
    0.26 lbs
    2-1/2"
    0.31
    3"
    0.38 lbs
    Top Rail Sleeve
    Size
    Weight
    1-3/8" x 6"
    0.37 lbs
    1-5/8" x 6"
    0.52 lbs
    2" x 7"
    0.62 lbs
    Loop Caps
    (Post x Top rail ) size
    Weight
    1-5/8" x 1-3/8"
    0.25 lbs
    2" x 1-5/8"
    0.30 lbs
    2" x 1-5/8"
    0.40 lbs
    2-1/2" x 1-5/8"
    0.55 lbs
    3" x 1-5/8"
    0.79 lbs
    Post Caps
    Post Size
    Weight
    1-3/8"
    0.10 lbs
    1-5/8"
    0.15 lbs
    2"
    0.19 lbs
    2-1/2"
    0.25 lbs
    3"
    0.45 lbs
    4"
    0.90 lbs
    6-5/8"
    2.30 lbs
    Male & Female Strap Hinge
    Post Size
    Weight
    1-3/8"
    0.58 lbs
    1-5/8"
    0.60 lbs
    2"
    0.67 lbs
    2-1/2"
    0.69 lbs
    3"
    1.15 lbs

    Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories

    Hot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence AccessoriesHot Dip Galvanised Iron Craft Chain Link Fence Hardware Metal Fence Accessories



    Packaging & Shipping

    It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;
    It has 4 metal corners to keep the pallet more strong;
    It has metal plate under the plastic bandage to reduce the apressure of fence panels;
    It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.

    FAQ

    1. High Quality Courtyard Sliding Gate Payment :

    T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight

    Or 30% deposit,70% L/C st sight

    2. High Quality Courtyard Sliding Gate Delivery:

    within 15 days after receiving the advance payment
