Chain link fence also known by some as diamond wire mesh, rhombic
wire mesh, cyclone fence, is one of the most popular choices of
fence for both light residential to heavy commercial fence
applications. Chain link fence is one of the most practical styles
of fence, relatively easy to install, and very cost effective.
Material: Made of quality low steel wire, stainless steel wire, aluminum
alloy wire and PVC wire.
PVC coated wire, powder coated wire, stainless steel wire,
(201,302,304,304L, 316, 316L),
high-quality low-carbon steel wire, galvanized steel wire, iron
wire and so on.
The materials used to build your fence will affect its price. The
type of wood, metal, or other material used for your fence will
either decrease or increase the price of the fence you want to
install.
Mesh Openning:1"(25mm) - 3"(76mm)
Hole shape: Diamond
Wire Dia: 1.6-4.2mm
Width: 1.5m, 1.8m, 2.14m etc
Material: Galvanzied wire, stainless steel wire, Galvanzied+PVC
coated wire, Low carbon steel wire
Galvanzied Wire:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Stainless steel wire:Stainless steel 304,316 etc.
Galvanized chain link fence and PVC coated chain link fence Main
specificatin as follows:
Mesh | Hot Dipped | PVC Coated |
| Wire Dia.(mm) | Weight kg/m² | Wire Dia. before/ after | Weight kg/m² |
1" (25mm) | 2.80 | 3.87 | 2.60/3.20 | 3.70 |
| 2.40 | 2.90 | 2.00/2.60 | 2.30 |
| 2.10 | 2.30 | 1.40/2.00 | 1.20 |
| 1.60 | 1.34 | 1.00/1.60 | 0.70 |
1.5" (40mm) | 3.40 | 3.70 | 3.40/4.00 | 3.90 |
| 3.00 | 3.00 | 2.60/3.20 | 2.40 |
| 2.80 | 2.40 | 2.00/2.60 | 1.40 |
| 2.10 | 1.40 | 1.40/2.00 | 0.80 |
2" (50mm) | 4.20 | 4.50 | 3.40/4.00 | 3.20 |
| 3.40 | 2.90 | 2.60/3.20 | 1.90 |
| 2.80 | 1.90 | 2.00/2.60 | 1.20 |
| 2.10 | 1.20 | 1.40/2.00 | 0.60 |
2.25" (56mm) | 4.20 | 3.90 | 3.40/4.00 | 2.80 |
| 3.40 | 2.60 | 2.60/3.20 | 1.70 |
| 2.80 | 1.70 | 2.00/2.60 | 1.00 |
| 2.10 | 1.00 | 1.40/2.00 | 0.55 |
2.4" (60mm) | 4.20 | 3.70 | 3.40/4.00 | 2.60 |
| 3.40 | 2.50 | 2.60/3.20 | 1.60 |
| 2.80 | 1.63 | 2.00/2.60 | 1.00 |
| 2.10 | 1.00 | 1.40/2.00 | 0.48 |
2.5" (64mm) | 4.20 | 3.50 | 3.40/4.00 | 2.50 |
| 3.40 | 2.30 | 2.60/3.20 | 1.50 |
| 2.80 | 1.60 | 2.00/2.60 | 0.90 |
| 2.10 | 0.90 | / | / |
3" (76mm) | 4.20 | 3.00 | 4.40/5.00 | 3.40 |
| 3.40 | 2.00 | 3.40/4.00 | 2.10 |
| 2.80 | 1.30 | 2.60/3.20 | 1.30 |
| 2.10 | 0.80 | / | |

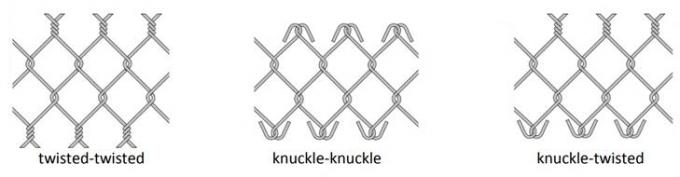

edge of chain link fence
Accessories of chain link fence:

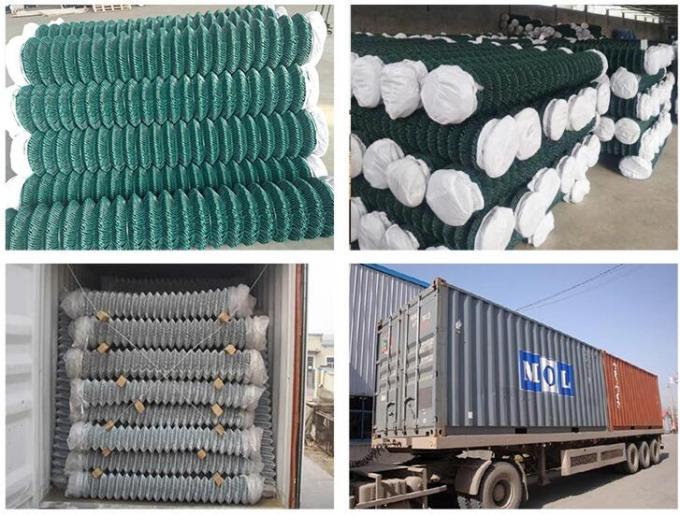

Packing & Loading of chain link fence:
Our Services
1. Providing sample ,
2. Customization: according to your size processing ,
3. respond promptly .
4. Best reasonable factory direct sale price .
5. supply sample for your test quality .
6. After-sales support return if any quality problem .
